Waterproof Switch Panels

CPI’s line of pendant style switches can be specified as part of a standard or custom panel mount configuration. What makes our panel mount switches unique is really the same thing that makes our entire waterproof pendant switch line unique: namely the durability and reliability of the switches.

Convenient pre-made panel mount assemblies can save you time and plug directly into your control fixture, in a variety of different stock configurations. as pictured below. Or you can order our switches in panel mount form and plug them easily into your own assemblies.

Electrical Ratings -28VDC / 120VAC 5A resistive, 3A inductive

Endurance: (12VDC Resistive)
2A, 5A100,000 cycles
10A, 15A25,000 cycles
*Extended life versions available up to 5 million cycles. (load dependent)
Operating Temperature:
Santoprene Seal-40ºF to 221ºF
Neoprene Seal-65F to 165F

Waterproof Switch Panel Applications

CPI Waterproof Switch panels can be used in a wide variety of applications, and are orderable in 2 switch panels with flexible electrical specifications. Switches can be wired in series, in parallel or remain independent. Terminations are specifiable as are all normal switch parameters for details see our E1333 Waterproof Switch Panel or view the datasheet below.

Common Switch Panel applications include:

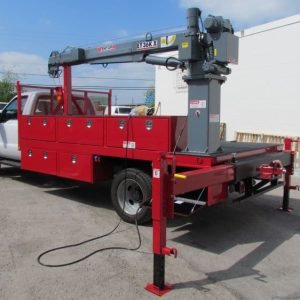

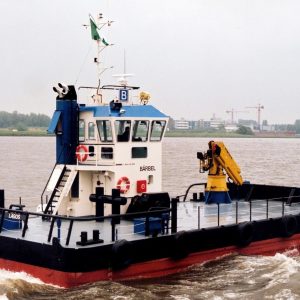

Marine Power On/OffHitch Control
Outrigger controlHorn Activation
Winch and Lift Gate ControlAPU Activation
Trim Tabs (Boat)Generator Control

View the CPI Switch Panel Datasheet Below.  For more information on our customization capabilities call an engineer at (973) 887-9400


CPI Panel Switches Data Sheet
View the Panel Switches Data Sheet
