Heavy Duty Limit Switches – The CPI E1 Series
CPI Limit switches see widespread use in the toughest Military and Industrial applications owing to the robustness of the design and manufacturing of these parts. Despite this they are among the most affordable waterproof limit switches in this class, with quantity pricing often an order of magnitude below similar offerings from Honeywell, Eaton, and Otto. We’ve been making these parts since 1946 and there seems to be a few things about high quality USA based manufacturing that our competitors haven’t quite figured out yet.
Our industrial models feature Santoprene sealed actuators designed to push the limits of electromechanical endurance. For extended temperature ranges, our Neoprene sealed switches can operate over the full Mil-Spec range.
Limit Switches with Unlimited Potential
When you combine CPI’s industrial and military grade Momentary Contact Switches with the E Series bracket and actuator line, the result is a broad line of limit switches that can be configured for your specific applications. Many combinations of travel parameters, roller lever mounting configurations and endurance capabilities are offered as standard products.

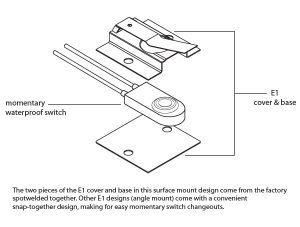

Limit Switch Mounting Bracket Customization
Of course, modifications to standards and completely custom brackets and actuators are also available. All brackets are fabricated from 302 or 304 stainless steel. Actuators are made of 17-7ph stainless steel.
Electrical Ratings -28VDC / 120VAC 5A resistive, 3A inductive
Endurance: (12VDC Resistive) | |
2A, 5A | 100,000 cycles |
10A, 15A | 25,000 cycles |
*Extended life versions available up to 5 million cycles. (load dependent) | |
Operating Temperature: | |
Santoprene Seal | -40ºF to 221ºF |
Neoprene Seal | -65°F to 165°F |
For more information on CPI Limit Switches, see our products below or contact us.
-
E1046 Straight Lever Flush Mount, Dual Switch
-
E1085 Roller Lever Flush Mount, Dual Switch
-
E1092 Simulated Roller Angle Mount
-
E1094 Straight Lever Flush Mount
-
E1096 Roller Lever Flush Mount
-
E1100 Straight Lever Angle Mount
-
E1101 Straight Lever Angle Mount
-
E1102 Roller Lever Angle Mount
-
E1103 Roller Lever Angle Mount
-
E1105 Roller Lever Angle Mount
-
E1106 Profiled Lever Flush Mount
-
E1112 Simulated Roller Angle Mount
-
E1115 Simulated Roller Flush Mount
-
E1117 Roller Lever Angle Mount
-
E1118 Low Simulated Roller Angle Mount
-
E1120 Low Simulated Roller Angle Mount
-
E1127 Simulated Roller Flush Mount
-
E1129 Simulated Roller Angle Mount
-
E1131 Simulated Roller Lever Angle Mount, Dual Switch
-
E1134 Roller Lever Flush Mount
-
E1161 Roller Lever Angle Mount
-
E1283 Roller Lever Flush Mount
-
E1294 Straight Lever Flush Mount
-
E1303 Simulated Roller Reverse Angle Mount
-
E1310 Simulated Roller Reverse Angle Mount
Make The “Switch” to CPI
If your momentary switch application demands high performance, we think you should demand CPI. Please call us today to speak with our engineering team about your needs.
